FQQ Easy™ 300/500 V
FQQ Easy™ 300/500 V
The cable may be used for permanent installation on ladders, directly in walls, concrete, in conduits or ducts. For use indoors and outdoors but not in ground or water. The cable have protection against exposure of UV-light.
Read moreFQQ Easy™ 2X1,5 300/500 V black
Nexans ref. 14150098-201-05 - Country ref. 0455445
- Packaging: Drum (500m)
- Colour: Black
- Number of cores: 2
- Nominal outer diameter: 8.0 mm
- Approximate weight: 9.5 kg/100m
FQQ Easy™ 3G1,5 300/500 V
Nexans ref. 14150198-412-05 - Country ref. 0455415
- Packaging: Drum (500m)
- Colour: White
- Number of cores: 3
- Nominal outer diameter: 8.1 mm
- Approximate weight: 9.9 kg/100m
FQQ Easy™ 3G1,5 300/500 V black Cable Guy
Nexans ref. 14150384-201-01 - Country ref. 0455427
- Packaging: Cable guy (75m)
- Colour: Black
- Number of cores: 3
- Nominal outer diameter: 8.1 mm
- Approximate weight: 9.9 kg/100m
FQQ Easy™ 5G1,5 300/500 V black Cable Guy
Nexans ref. 14150184-201-17 - Country ref. 0455431
- Packaging: Cable guy (50m)
- Colour: Black
- Number of cores: 5
- Nominal outer diameter: 8.9 mm
- Approximate weight: 14.2 kg/100m
Description
Description
Standards
-
ProductSS 424 02 19-5
Description

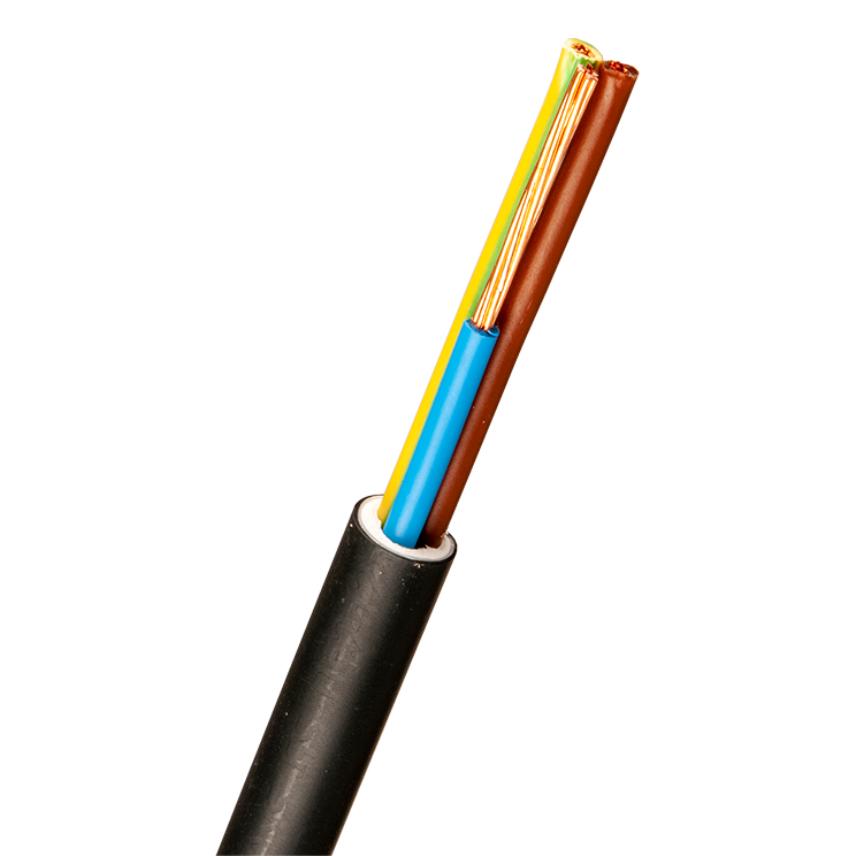

FQQ Easy™ is a halogen free installation cable with circular, stranded copper conductors. The cable is designed according to SS 424 02 19-5. The conductors have resistance and number of wires according to IEC 60228 class 2. The cores are identified by colours according to HD 308. The sheath is marked, type/manufacturer/year+month/metre marking. FQQ Easy™ meets the requirements for flammability class Dcas2d2a2 according to CPR and have protection against exposure of UV-light according to HD 626 S1 part 2.5.1. The conductor insulation shall be protected against UV light that can occur for example in light fixtures and light signs.
Lifemark™ recycling marking
The external surface of the outer sheath is embossed with a text which specifies all components in the polymers and prepares the cable for future recycling.
Certification
Certified by Intertek.
Quality and environmental management system
Certified according to ISO 9001, ISO/TS 16949 and ISO 14001.
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Dimensional characteristics
Dimensional characteristics
Electrical characteristics
Electrical characteristics
Usage characteristics
Usage characteristics
Resources
Resources
Selling & delivery Information
FQQ Easy™ will be delivered in lengths of 500 m. The drum is marked with manufacturer, type of cable and length.
