H03V2V2-F (RKK 90) 300/300 V

Products

H03V2V2-F 2X0,5 (RKK 90) 300/300V

Nexans ref. 22010316-001-40

  • Packaging: Drum (5000m)
  • Sheath colour: Black
  • Number of cores: 2
  • Conductor cross-section: 0.5 mm²
  • Length: 5000 m



H03V2V2-F 2X0,5 (RKK 90) 300/300V

Nexans ref. 22010316-007-40

  • Packaging: Drum (5000m)
  • Sheath colour: Grey
  • Number of cores: 2
  • Conductor cross-section: 0.5 mm²
  • Length: 5000 m



H03V2V2-F 3G0,5 (RKK 90) 300/300V

Nexans ref. 22010516-001-40

  • Packaging: Drum (5000m)
  • Sheath colour: Black
  • Number of cores: 3
  • Conductor cross-section: 0.5 mm²
  • Length: 5000 m



H03V2V2-F 4G0,5 (RKK 90) 300/300V

Nexans ref. 22010716-070-40

  • Packaging: Drum (5000m)
  • Sheath colour: Grey
  • Number of cores: 4
  • Conductor cross-section: 0.5 mm²
  • Length: 5000 m



H03V2V2-F 2X0,75 (RKK 90) 300/300V

Nexans ref. 22006016-001-40

  • Packaging: Drum (5000m)
  • Sheath colour: Black
  • Number of cores: 2
  • Conductor cross-section: 0.75 mm²
  • Length: 5000 m



H03V2V2-F 2X0,75 (RKK 90) 300/300V

Nexans ref. 22006016-002-40

  • Packaging: Drum (5000m)
  • Sheath colour: White
  • Number of cores: 2
  • Conductor cross-section: 0.75 mm²
  • Length: 5000 m



H03V2V2-F 3G0,75 (RKK 90) 300/300V

Nexans ref. 22010016-001-48

  • Packaging: Drum (4500m)
  • Sheath colour: Black
  • Number of cores: 3
  • Conductor cross-section: 0.75 mm²
  • Length: 4500 m



Description

Description

Standards

  • International
    EN 50525-2-11
  • National
    SS EN 50525-2-11

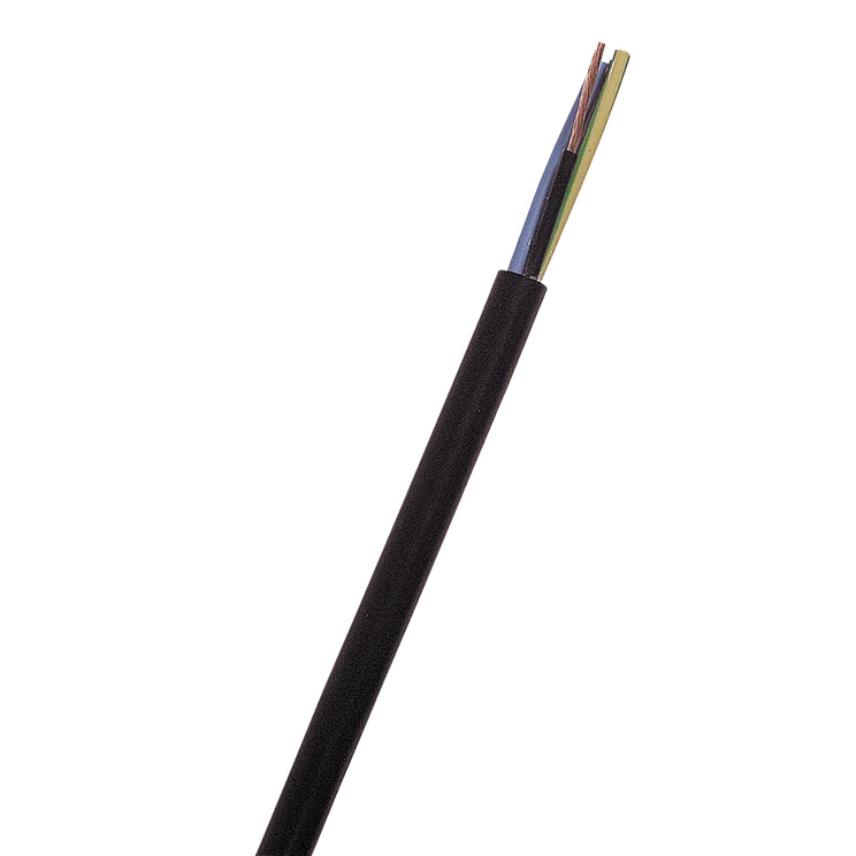

Design

  1. Conductor Circular, multiple stranded copper conductor in accordance with EN 60228, class 5.
  2. Insulation Coloured lead free PVC in accordance with EN 50525-2-11, TI3 in accordance with EN 50363-3.
  3. Lay-up The conductors are twisted together.
  4. Sheath Lead free PVC in accordance with EN 50525-2-11, TM3 in accordance with EN 50363-4-1. Example of sheath marking "NEXANS GS H03V2V2-F 3G0.75 SEMKO HAR".

Certification

Approved by SEMKO.

Flammability class

IEC 60332-1.

Quality system

EN ISO 9001.

Environmental system

The activities at our plant in Grimsås are certified to ISO 14001.

Characteristics

Characteristics

Construction characteristics

Construction characteristics

Conductor material
Bare copper
Insulation
PVC
Outer sheath
PVC
Halogen free
No

Electrical characteristics

Electrical characteristics

Rated Voltage Uo/U (Um)
300 / 300 V

Usage characteristics

Usage characteristics

Packaging
Plastic drum
Operating temperature, range
0 ... 90 °C

Resources

Resources

Selling & delivery Information

H03V2V2-F is delivered in specified lengths. The package is marked with manufacturer, type of cable, length and manufacturing date. On the label on drums and boxes upon request also the customer item number and/or order number.
