H05V2V2-F (RKK-S 90GR) 300/500 V
H05V2V2-F (RKK-S 90GR) 300/500 V

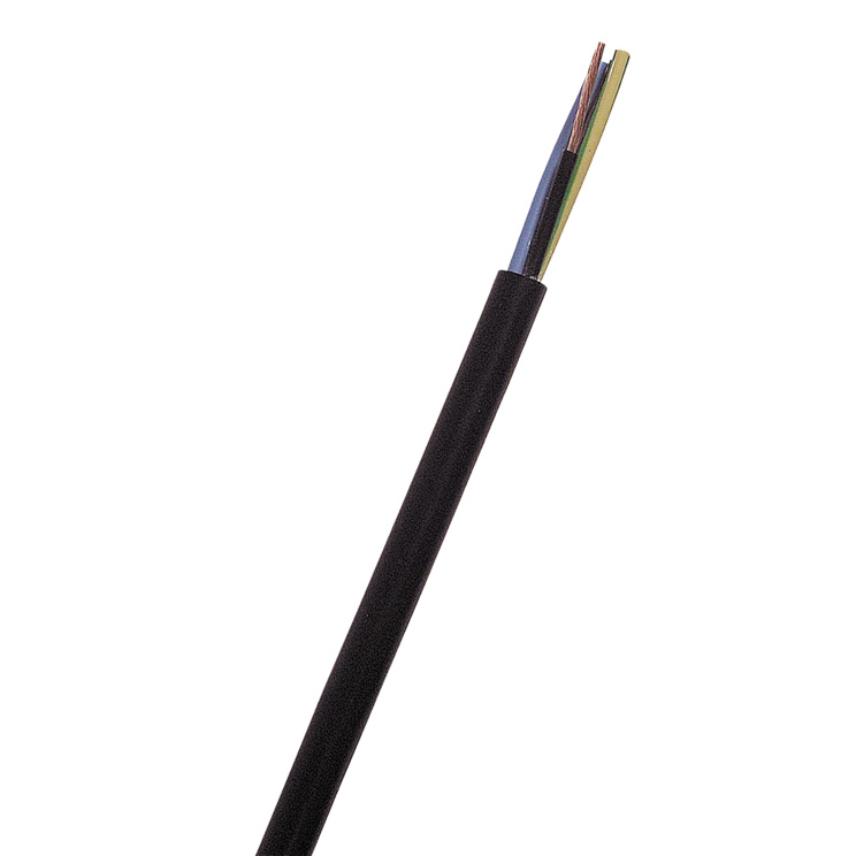

Round, flexible cable with lead free PVC insulation and sheath for max 90 °C operating temperature.
Read moreH05V2V2-F 2X0,75 (RKK-S 90GR) 300/500V
Nexans ref. 22012016-001-37
- Packaging: Drum (3000m)
- Sheath colour: Black
- Number of cores: 2
- Conductor cross-section: 0.75 mm²
- Conductor diameter: 1.1 mm
- Approximate weight: 55 kg/km
- Length: 3500 m
H05V2V2-F 3G0,75 (RKK-S 90GR) 300/500V
Nexans ref. 22012216-001-38
- Packaging: Drum (3500m)
- Sheath colour: Black
- Number of cores: 3
- Conductor cross-section: 0.75 mm²
- Conductor diameter: 1.1 mm
- Approximate weight: 65 kg/km
- Length: 3500 m
H05V2V2-F 3G0,75 (RKK-S 90GR) 300/500V
Nexans ref. 22012216-002-38
- Packaging: Drum (3500m)
- Sheath colour: White
- Number of cores: 3
- Conductor cross-section: 0.75 mm²
- Conductor diameter: 1.1 mm
- Approximate weight: 65 kg/km
- Length: 3500 m
H05V2V2-F 3G0,75 (RKK-S 90GR) 300/500V
Nexans ref. 22012216-007-38
- Packaging: Drum (3500m)
- Sheath colour: Light grey
- Number of cores: 3
- Conductor cross-section: 0.75 mm²
- Conductor diameter: 1.1 mm
- Approximate weight: 65 kg/km
- Length: 3500 m
H05V2V2-F 3G1 (RKK-S 90GR) 300/500V
Nexans ref. 22013216-001-37
- Packaging: Drum (3000m)
- Sheath colour: Black
- Number of cores: 3
- Conductor cross-section: 1 mm²
- Conductor diameter: 1.3 mm
- Approximate weight: 76 kg/km
- Length: 3000 m
H05V2V2-F 3G1 (RKK-S 90GR) 300/500V
Nexans ref. 22013216-007-37
- Packaging: Drum (3000m)
- Sheath colour: Light grey
- Number of cores: 3
- Conductor cross-section: 1 mm²
- Conductor diameter: 1.3 mm
- Approximate weight: 76 kg/km
- Length: 3000 m
H05V2V2-F 3G2,5 (RKK-S 90GR) 300/500V
Nexans ref. 22015216-007-35
- Packaging: Drum (1500m)
- Sheath colour: Light grey
- Number of cores: 3
- Conductor cross-section: 2.5 mm²
- Conductor diameter: 2.05 mm
- Approximate weight: 166 kg/km
- Length: 1500 m
Description
Description
Standards
-
InternationalEN 50525-2-11
-
NationalSS EN 50525-2-11
Design
- Conductor Circular, multiple stranded copper conductor in accordance with IEC 60228, class 5.
- Insulation Coloured lead free PVC in accordance with EN 50525-2-11, TI3 in accordance with EN 50363-3.
- Lay-up The connectors are twisted together.
- Sheath Lead free PVC in accordance with EN 50525-2-11, TM3 in accordance with EN 50363-4-1. The sheath is marked "NEXANS GS H05V2V2-F "No of conductors G/X cross section area" SEMKO HAR".
Certification
Approved by INTERTEK SEMKO.
Flammability class
IEC 60332-1 (F2).
Quality- and environmental systems
The activities at our plant in Grimsås are certified to ISO 9001, ISO 14001, IATF 16949 and IRIS.
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Conductor material
Bare copper
Insulation
PVC
Outer sheath
PVC
Halogen free
No
Electrical characteristics
Electrical characteristics
Rated Voltage Uo/U (Um)
300/500 V
Usage characteristics
Usage characteristics
Packaging
Plastic drum
Operating temperature, range
0 ... 90 °C
Resources
Resources
Selling & delivery Information
H05V2V2-F is delivered in specified lengths. The package is marked with manufacturer, type of cable, length and manufacturing date. On the label on drums and boxes upon request also the customer item number and/or order number.
