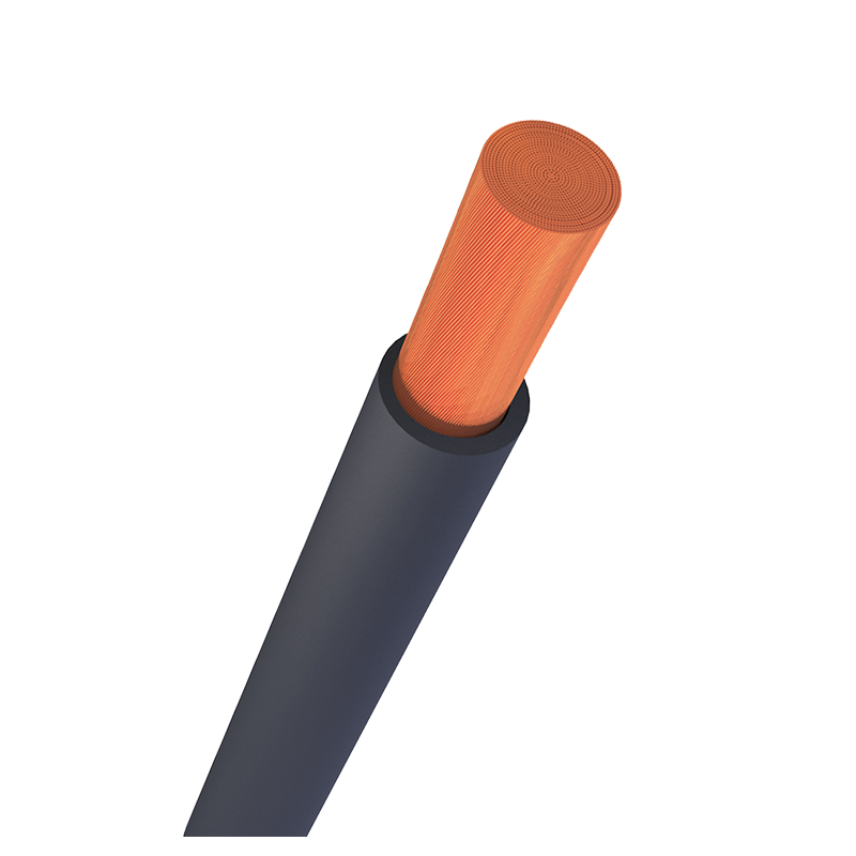

H01N2-D welding cables with reinforced sheath

Products

H01N2-D 1x16 cut to length

Nexans ref. 20030198-901-05 - Country ref. 0536905

  • Packaging: Cut to length (m)
  • Conductor cross-section: 16 mm²
  • Maximum outer diameter: 11.0 mm
  • Minimum outer diameter: 8.8 mm
  • Approximate weight: 207 kg/km



H01N2-D 1x25 cut to length

Nexans ref. 20011098-901-05 - Country ref. 0536915

  • Packaging: Cut to length (m)
  • Conductor cross-section: 25 mm²
  • Maximum outer diameter: 12.7 mm
  • Minimum outer diameter: 10.1 mm
  • Approximate weight: 283 kg/km



H01N2-D 1x35 cut to length

Nexans ref. 20006098-901-05 - Country ref. 0536925

  • Packaging: Cut to length (m)
  • Conductor cross-section: 35 mm²
  • Maximum outer diameter: 14.2 mm
  • Minimum outer diameter: 11.4 mm
  • Approximate weight: 400 kg/km



H01N2-D 1x50 cut to length

Nexans ref. 20000998-901-05 - Country ref. 0536935

  • Packaging: Cut to length (m)
  • Conductor cross-section: 50 mm²
  • Maximum outer diameter: 16.5 mm
  • Minimum outer diameter: 13.2 mm
  • Approximate weight: 524 kg/km



H01N2-D 1x70 cut to length

Nexans ref. 20006198-901-05 - Country ref. 0536945

  • Packaging: Cut to length (m)
  • Conductor cross-section: 70 mm²
  • Maximum outer diameter: 19.2 mm
  • Minimum outer diameter: 15.3 mm
  • Approximate weight: 736 kg/km



H01N2-D 1x95 cut to length

Nexans ref. 20016498-901-05 - Country ref. 0536955

  • Packaging: Cut to length (m)
  • Conductor cross-section: 95 mm²
  • Maximum outer diameter: 21.4 mm
  • Minimum outer diameter: 17.1 mm
  • Approximate weight: 947 kg/km



H01N2-D 1x120 cut to length

Nexans ref. 20013498-901-05 - Country ref. 0536965

  • Packaging: Cut to length (m)
  • Conductor cross-section: 120 mm²
  • Maximum outer diameter: 24.0 mm
  • Minimum outer diameter: 19.2 mm
  • Approximate weight: 1156 kg/km



Description

Description

Standards

  • Product
    EN 50525-2-81; HD 22.6; IEC 60245

Application

Industry, and especially the steel construction , consumes steel in various forms:  metal sheets, tubes and so on.  Consequently the trade of welding is dominating in this activity.  Nexans is present on this market, and proposes to its customers a range of welding cables which is characterized by a high  flexibility.



Installation

Electrical supply of moving welding machines. This cable connects the welding equipment to the electrode hoder. It is also recommended for all flexible links working under a low voltage U0/U  100/100V maximum . The flexible conductors and the reinforced sheath give to the cables H01N2-D a high flexibility.



Characteristics

Characteristics

Construction characteristics

Construction characteristics

Conductor flexibility
Extra-flexible class 6
Conductor material
Bare annealed copper stranded
Conductor shape
Circular
Outer sheath
Special crosslinked Elastomer EM5
Protection
-
Sheath colour
Black

Dimensional characteristics

Dimensional characteristics

Dimensional standards
IEC 60228, NF C 32-013
Number of cores
1

Electrical characteristics

Electrical characteristics

Nominal Voltage
100 V
Rated Voltage Uo/U (Um)
100 V

Mechanical characteristics

Mechanical characteristics

Cable flexibility
Very flexible
Mechanical resistance to impacts
Medium

Usage characteristics

Usage characteristics

Packaging
Cut to length
Chemical resistance
Oil resistant
Flame retardant
EN 60332-1-2
Max. conductor temperature in service
85 °C
Operating temperature, range
-25 ... 60 °C
Short-circuit max. conductor temperature
250 °C
Weather resistance
Good

Resources

Resources

Documentation

Selling & delivery Information

Marking    (EN   CENELEC  marking)

USE <'HAR> H01N2-D   1 x s             213

s : cross-section in mm²
