FQLQ Easy™ 450/750 V

Products

FQLQ Easy™ 450/750 V 7G1,5

Nexans ref. 14091598-412-05 - Country ref. 0468085

  • Packaging: Drum (500m)
  • Conductor cross-section: 1.5 mm²
  • Nominal outer diameter: 13.0 mm
  • Approximate weight: 24.6 kg/100m



FQLQ Easy™ 450/750 V 7G2,5

Nexans ref. 14091698-412-05 - Country ref. 0468095

  • Packaging: Drum (500m)
  • Conductor cross-section: 2.5 mm²
  • Nominal outer diameter: 13.7 mm
  • Approximate weight: 32.4 kg/100m



FQLQ Easy™ 450/750 V 7G2,5

Nexans ref. 14091699-412-04 - Country ref. 0468094

  • Packaging: Reel (250m)
  • Conductor cross-section: 2.5 mm²
  • Nominal outer diameter: 13.7 mm
  • Approximate weight: 32.4 kg/100m



FQLQ Easy™ 7G1.5 450/750 V (CPR)

Nexans ref. 14091599-412-25 - Country ref. 0468087

  • Packaging: Drum (300m)
  • Conductor cross-section: 1.5 mm²
  • Nominal outer diameter: 13.0 mm
  • Approximate weight: 24.6 kg/100m



Description

Description

Standards

  • National
    SS 424 02 19-4

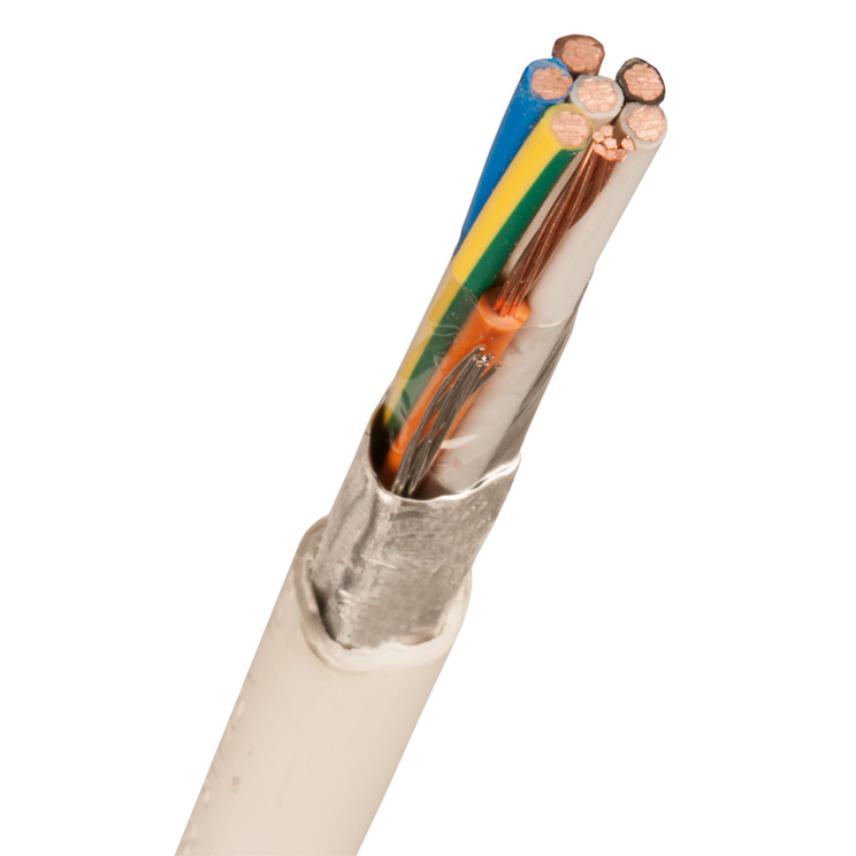

FQLQ Easy™ is a halogen free, HFFR-insulated, aluminium taped, HFFR-sheathed house wiring cable with circular, stranded copper conductors. The cable has a stranded drain wire of tinned copper under and in contact with the aluminium tape. FQLQ Easy™ is designed according to SS 424 02 19-4 in applicable parts. The conductors have resistance and number of wires according to IEC 60228 class 2. The cores are identified by colours according to HD 308 (7 core cables have brown, black, grey, blue, yellow/green, orange and white). The sheath is marked: type/manufacturer/year+month/metre marking. FQLQ Easy™ meets the requirements for fire classification according to CPR Dcas2d2a2. The cable emits no corrosive gases and has low smoke production during fire. The conductor insulation shall be protected against UV light that can occur for example in light fixtures and light signs. The cable is certified by Intertek.


Lifemark(TM) recycling marking

The external surface of the outer sheath is embossed with a text which specifies all components in the polymers and prepares the cable for future recycling.


Certification

Certified by Interek SEMKO.


Quality and environmental management system

Certified according to ISO 9001, IRIS, ISO/TS 16949 and ISO 14001.

Characteristics

Characteristics

Construction characteristics

Construction characteristics

Conductor material
Copper
Conductor shape
Circular
Conductor flexibility
Stranded class 2
Outer sheath
HFFR (polyolefin)
Colour
White
Insulation
Halogen free polyolefin
Halogen free
Yes

Dimensional characteristics

Dimensional characteristics

Number of cores
7

Electrical characteristics

Electrical characteristics

Rated Voltage Uo/U (Um)
450/750 V

Usage characteristics

Usage characteristics

Minimum installation temperature
-10 °C
Recommended minimum installation temperature
0 °C
Maximum operating temperature
70 °C
Short-circuit max. conductor temperature
150 °C
Electro magnetic interference resistance
Yes
Gases corrosivity
IEC 60754-2
Smoke density
IEC 61034

Resources

Resources

Selling & delivery Information

FQLQ Easy™ will be delivered in lengths of 250 or 500 m. The drum is marked with manufacturer, type of cable and length.
