EQFR 450/750 V

Products

EQFR 450/750 V 7X1,5

Nexans ref. 16174198-898-05 - Country ref. 0127615

  • Packaging: Drum (500m)
  • Number of cores: 7
  • Nominal outer diameter: 15.0 mm
  • Approximate weight: 29.0 kg/100m



EQFR 450/750 V 10X1,5

Nexans ref. 16174298-898-05 - Country ref. 0127625

  • Packaging: Drum (500m)
  • Number of cores: 10
  • Nominal outer diameter: 16.0 mm
  • Approximate weight: 35.0 kg/100m



EQFR 450/750 V 14X1,5

Nexans ref. 16174398-898-05 - Country ref. 0127635

  • Packaging: Drum (500m)
  • Number of cores: 14
  • Nominal outer diameter: 17.0 mm
  • Approximate weight: 43.0 kg/100m



EQFR 450/750 V 19X1,5

Nexans ref. 16174498-898-05 - Country ref. 0127645

  • Packaging: Drum (500m)
  • Number of cores: 19
  • Nominal outer diameter: 19.0 mm
  • Approximate weight: 54.0 kg/100m



EQFR 450/750 V 27X1,5

Nexans ref. 16174598-898-05 - Country ref. 0127655

  • Packaging: Drum (500m)
  • Number of cores: 27
  • Nominal outer diameter: 23.0 mm
  • Approximate weight: 83.0 kg/100m



EQFR 450/750 V 37X1,5

Nexans ref. 16174698-898-05 - Country ref. 0127665

  • Packaging: Drum (500m)
  • Number of cores: 37
  • Nominal outer diameter: 25.0 mm
  • Approximate weight: 94.0 kg/100m



EQFR 450/750 V 48x1,5

Nexans ref. 16174798-898-05 - Country ref. 0127685

  • Packaging: Drum (500m)
  • Number of cores: 48
  • Nominal outer diameter: 29.0 mm
  • Approximate weight: 122.0 kg/100m



Description

Description

Standards

  • National
    SS 424 03 21

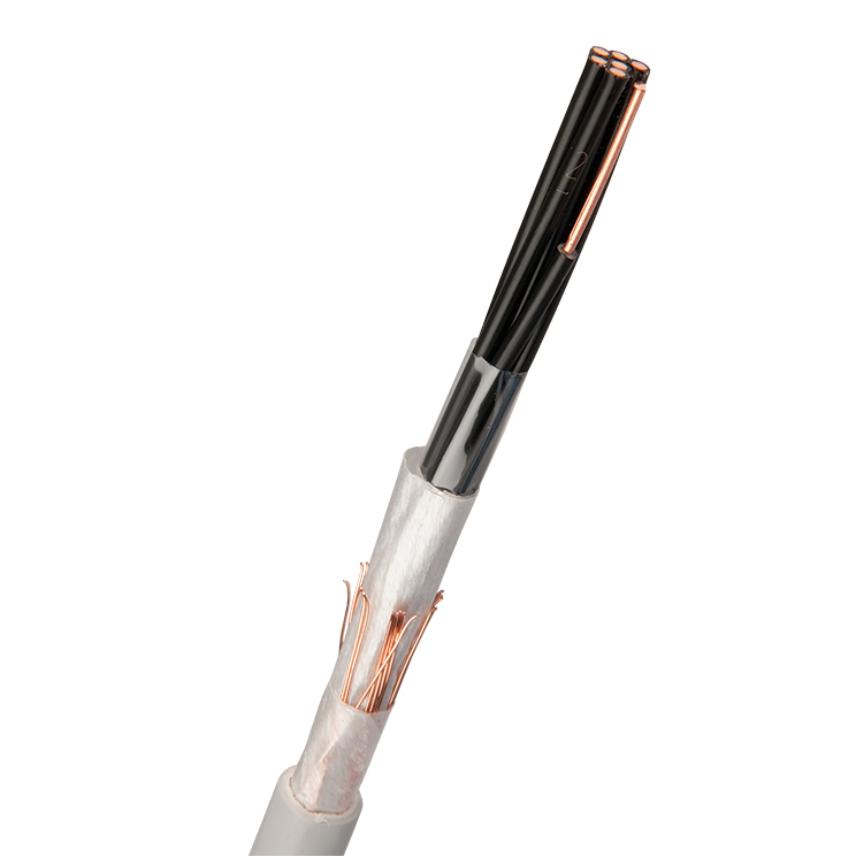

EQFR is a halogen free HFFR-insulated, copper wire screened, HFFR-sheathed control cable with circular, solid copper conductors. The cable is designed according to HD 627 in applicable parts. The conductors have resistance and number of wires according to IEC 60228 class 1. The cores are identified by colours according to HD 308. The sheath is marked type/manufacturer/year+month/metre marking. EQFR meets the fire requirements according to CPR Dcas2d2a2 and emits no corrosive gases when burning and has low smoke production. The cable is certified by Intertek.


Lifemark(TM) recycling marking

The external surface of the outer sheath is embossed with a text which specifies all components in the polymers and prepares the cable for future recycling.


Standards

EQFR is manufactured and tested according to SS 424 03 21 in applicable parts.


Certification

Certified by Intertek.


Quality and environmental management system

Certified according to ISO 9001, IRIS, ISO/TS 16949 and ISO 14001.

Characteristics

Characteristics

Construction characteristics

Construction characteristics

Conductor material
Copper
Conductor shape
Round normal
Insulation
Halogen free polyolefin
Insulation colour
White
Screen
Copper wires
Core identification
Numbers
Outer sheath
HFFR (polyolefin)
Colour
Grey
Halogen free
Yes

Dimensional characteristics

Dimensional characteristics

Conductor cross-section
1.5 mm²

Electrical characteristics

Electrical characteristics

Rated Voltage Uo/U (Um)
450/750 V

Usage characteristics

Usage characteristics

Minimum installation temperature
-10 °C
Recommended minimum installation temperature
0 °C
Maximum operating temperature
70 °C
Minimum operating temperature
-35 °C
Short-circuit max. conductor temperature
160 °C
U.V resistance
Yes
Water proof
Good

Resources

Resources

Documentation

pdf — 51.1 kB

Selling & delivery Information

EQFR will be delivered in lengths of 500 m. The drum is marked with manufacturer, type of cable and length. The ends of the cable are sealed.
