EQQR 450/750 V


EQQR 450/750 V 7X1,5

Nexans ref. 16162198-898-05 - Country ref. 0127555

  • Packaging: Drum (500m)
  • Number of cores: 7
  • Nominal outer diameter: 12.0 mm
  • Approximate weight: 22.5 kg/100m


EQQR 450/750 V 14X1,5

Nexans ref. 16162498-898-05 - Country ref. 0127575

  • Packaging: Drum (500m)
  • Number of cores: 14
  • Nominal outer diameter: 15.0 mm
  • Approximate weight: 35.0 kg/100m


EQQR 450/750 V 19X1,5

Nexans ref. 16162598-898-05 - Country ref. 0127585

  • Packaging: Drum (500m)
  • Number of cores: 19
  • Nominal outer diameter: 17.0 mm
  • Approximate weight: 45.0 kg/100m


EQQR 450/750 V 27X1,5

Nexans ref. 16162698-898-05 - Country ref. 0127595

  • Packaging: Drum (500m)
  • Number of cores: 27
  • Nominal outer diameter: 20.0 mm
  • Approximate weight: 62.0 kg/100m


EQQR 450/750 V 37X1,5

Nexans ref. 16162798-898-05 - Country ref. 0127605

  • Packaging: Drum (500m)
  • Number of cores: 37
  • Nominal outer diameter: 23.0 mm
  • Approximate weight: 82.0 kg/100m





  • International
    HD 627.4 S1/C1
  • National
    SS 424 03 21

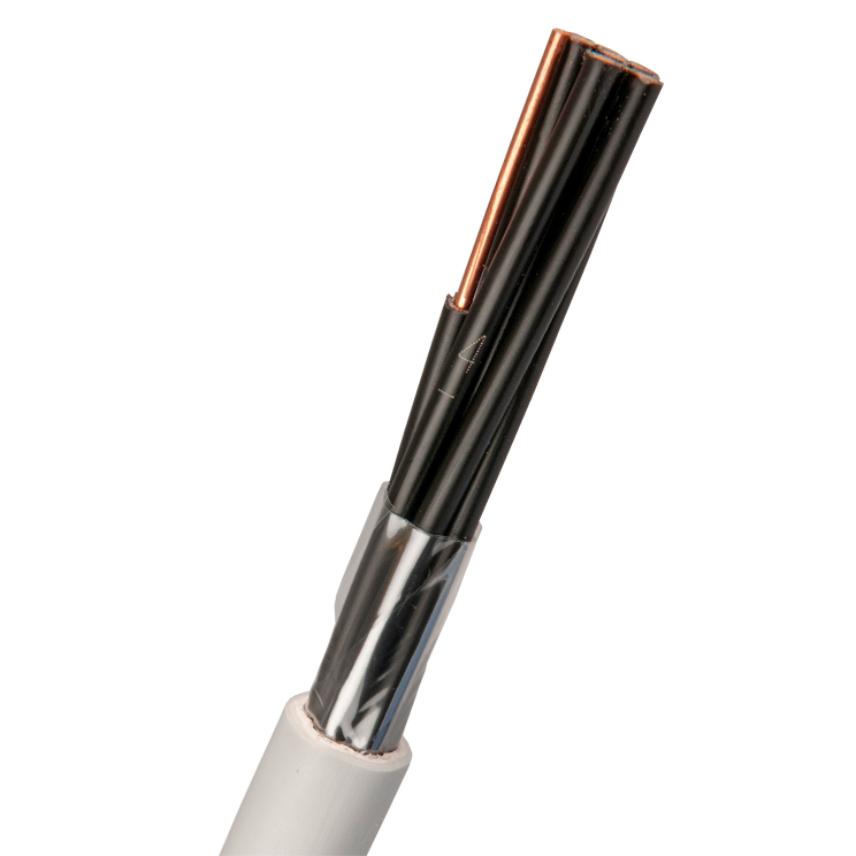

EQQR is a halogen free HFFR-insulated, HFFR-sheathed control cable with circular, solid copper conductors. The cable is designed according to HD 627 in applicable parts. The conductors have resistance and number of wires according to IEC 60228 class 1. The cores are identified by colours according to HD 308. The sheath is marked type/manufacturer/flema propagation/year+month/metre marking. EQQR meets the fire requirements according to CPR class Dcas2d2a2 and emits no corrosive gases when burning and has low smoke production. The conductor insulation shall be protected against UV light. The cable is certified by Intertek.

Lifemark(TM) recycling marking

The external surface of the outer sheath is embossed with a text which specifies all components in the polymers and prepares the cable for future recycling.


EQQR is manufactured and tested according to HD 627.4-C1 in applicable parts.


Approved by Intertek.

Quality and environmental management system

Certified according to ISO 9001, IRIS, ISO/TS 16949 and ISO 14001.



Construction characteristics

Construction characteristics

Conductor material
Conductor shape
Halogen free polyolefin
Outer sheath
HFFR (polyolefin)
Halogen free

Dimensional characteristics

Dimensional characteristics

Conductor cross-section
1.5 mm²

Electrical characteristics

Electrical characteristics

Rated Voltage Uo/U (Um)
450/750 V

Usage characteristics

Usage characteristics

Minimum installation temperature
-10 °C
Recommended minimum installation temperature
0 °C
Maximum operating temperature
70 °C
Short-circuit max. conductor temperature
150 °C
U.V resistance



Selling & delivery Information

EQQR will be delivered in lengths of 500 m. The drum is marked with manufacturer, type of cable and length. The ends of the cable are sealed.
