FQAR-G 150/250V

Products

FQAR-G 150/250 V 7X0,5

Nexans ref. 16210098-898-05 - Country ref. 0127835

  • Packaging: Drum (500m)
  • Number of cores: 7
  • Conductor cross-section: 0.5 mm²
  • Nominal outer diameter: 8.1 mm
  • Approximate weight: 10.0 kg/100m



FQAR-G 150/250 V 10X0,5

Nexans ref. 16210198-898-05 - Country ref. 0127845

  • Packaging: Drum (500m)
  • Number of cores: 10
  • Conductor cross-section: 0.5 mm²
  • Nominal outer diameter: 12.3 mm
  • Approximate weight: 12.3 kg/100m



FQAR-G 150/250 V 14X0,5

Nexans ref. 16210298-898-05 - Country ref. 0127855

  • Packaging: Drum (500m)
  • Number of cores: 14
  • Conductor cross-section: 0.5 mm²
  • Nominal outer diameter: 11.0 mm
  • Approximate weight: 16.0 kg/100m



FQAR-G 150/250 V 24X0,5

Nexans ref. 16210398-898-05 - Country ref. 0128215

  • Packaging: Drum (500m)
  • Number of cores: 24
  • Conductor cross-section: 0.5 mm²
  • Nominal outer diameter: 14.3 mm
  • Approximate weight: 24.7 kg/100m



FQAR-G 150/250 V 4X1,0

Nexans ref. 16214098-898-05 - Country ref. 0127865

  • Packaging: Drum (500m)
  • Number of cores: 4
  • Conductor cross-section: 1 mm²
  • Nominal outer diameter: 7.8 mm
  • Approximate weight: 9.5 kg/100m



FQAR-G 150/250 V 7X1,0

Nexans ref. 16214198-898-05 - Country ref. 0127875

  • Packaging: Drum (500m)
  • Number of cores: 7
  • Conductor cross-section: 1 mm²
  • Nominal outer diameter: 9.2 mm
  • Approximate weight: 13.5 kg/100m



FQAR-G 150/250 V 14X1,0

Nexans ref. 16214298-898-05 - Country ref. 0127895

  • Packaging: Drum (500m)
  • Number of cores: 14
  • Conductor cross-section: 1 mm²
  • Nominal outer diameter: 12.5 mm
  • Approximate weight: 24.0 kg/100m



Description

Description

Standards

  • International
    HD 627.4 C2
  • National
    SS 424 03 21

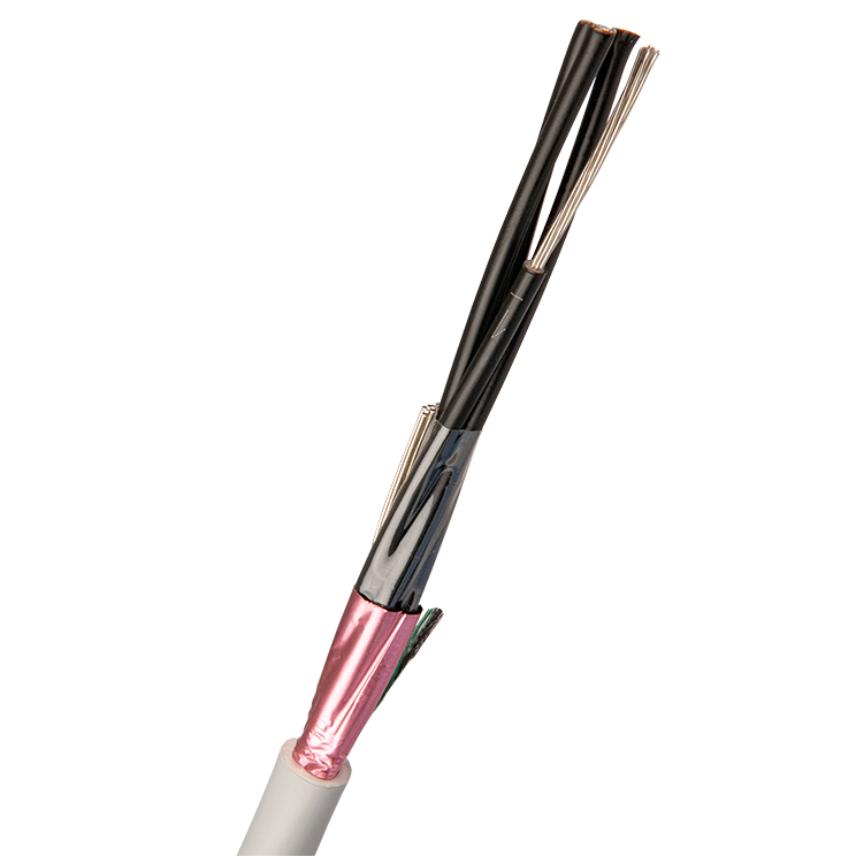

FQAR-G is a halogen free HFFR-insulated, aluminium screened, HFFR-sheathed control cable with circular, stranded, tinned copper conductors. To simplify the stripping the cable is provided with a tear thread. The cable is designed according to HD 627 in applicable parts. The cores are identified by numbers according to HD 308. The sheath is marked type/manufacturer/year+month/metre marking. FQAR-G meets the fire requirements according to CPR Dcas2d2a2 and emits no corrosive gases when burning and has low smoke production. The cable is certified by Intertek.


Lifemark(TM) recycling marking

The external surface of the outer sheath is embossed with a text which specifies all components in the polymers and prepares the cable for future recycling.


Certification

Certified by Intertek.


Quality and environmental management system

Certified according to ISO 9001, IRIS, ISO/TS 16949 and ISO 14001.

Characteristics

Characteristics

Construction characteristics

Construction characteristics

Conductor material
Tinned copper
Conductor shape
Tin metal coated, stranded
Insulation
Halogen free compound
Outer sheath
HFFR (polyolefin)
Colour
Grey
Halogen free
Yes

Electrical characteristics

Electrical characteristics

Rated Voltage Uo/U (Um)
150 / 250 V

Usage characteristics

Usage characteristics

Minimum installation temperature
-10 °C
Recommended minimum installation temperature
0 °C
Maximum operating temperature
70 °C
Minimum operating temperature
-40 °C
Length
500 m
Bending factor when laying
8 (xD)
U.V resistance
Yes

Resources

Resources

Selling & delivery Information

FQAR will be delivered in lengths of 500 m. The drum is marked with manufacturer, type of cable and length. The ends of the cable are sealed.
