Alsecure EQLQ Easy™ 450/750 V 5G2,5

Description

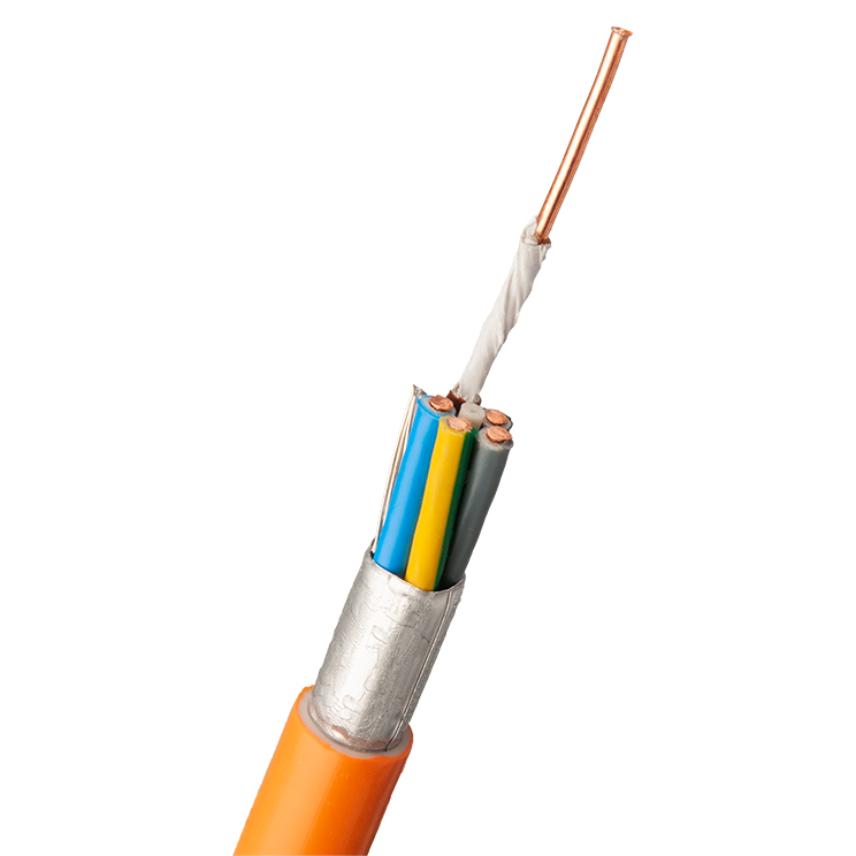

Alsecure EQLQ Easy™  a halogen free, HFFR insulated, aluminium taped, HFFR sheathed building wiring cable with circular, solid copper conductors. The cable has a drain wire of twisted tinned copper wires under and in contact with the aluminium tape. Alsecure EQLQ Easy™ is designed according to SS 424 02 19-6IAP. The conductors have resistance and number of wires according to SS-EN 60228 class 1. The cores are identified by colours according to HD 308. The sheath is marked type/manufacturer/year+month/metre marking. Alsecure EQLQ Easy™ meets the requirements for fire classification according to SS-EN IEC 60332-3-24(F4C)  . The cable emits no corrosive gases and has low smoke production during fire. The cable has protection against exposure of UV light according to HD 626 S1 part 2.5.1. The conductor insulation shall be protected against UV light that can occur for example in light fixtures and light signs.

Lifemark(TM) recycling marking

The external surface of the outer sheath is embossed with a text which specifies all components in the polymers and prepares the cable for future recycling.

Fire characteristics

Tested and approved according to several international standards, among others IEC 60331-2/EN 50200 (120 min), IEC 60332-3 cat C SS 424 14 75, IEC 61034, IEC 60754-2.

Quality and environmental management system

Certified according to ISO 9001, ISO/TS 16949 and ISO 14001.
