N-LINE® FQQ Easy™ LED

N-LINE®

FQQ Easy LED cable, predrawn in 16 mm flexible conduits

Download all documents

Products

products

Description

Standards

Product

EN 50525-2-31
Test

IEC 60332-1-2

Description

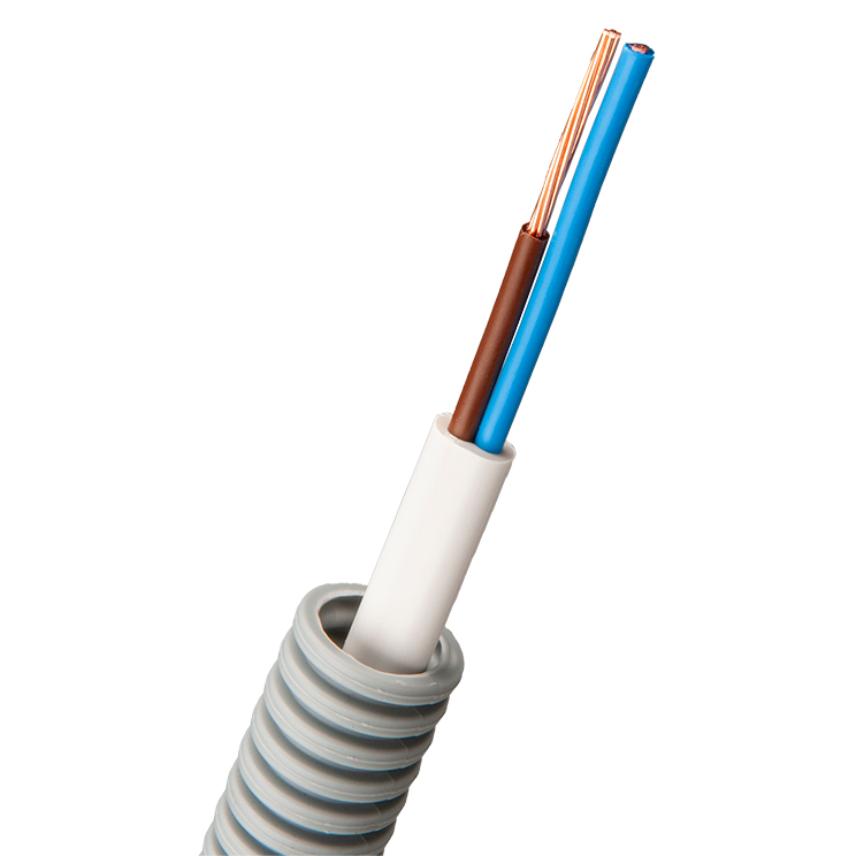

Pre-wired FQQ Easy™ LED 2x1,5 300/500V in 16 mm corrugated conduit. FQQ Easy™ LED is a halogen free installation cable with circular, stranded copper conductors. The cable is designed according to SS 424 02 19-5 in applicable parts. The conductors have resistance and number of wires according to IEC 60228 class 2. The cores are identified by colours according to HD 308. The sheath is marked, type/manufacturer/year+month/metre marking. FQQ Easy™ LED meets the requirements for flammability class Dcas2d2a1 according to CPR and have protection against exposure of UV-light according to HD 626 S1 part 2.5.1.

Lifemark™ recycling marking

The external surface of the outer sheath is embossed with a text which specifies all components in the polymers and prepares the cable for future recycling.

Quality and environmental management system

Certified according to ISO 9001, ISO/TS 16949 and ISO 14001.

The halogen-free PP (polypropylene) corrugated conduits will be delivered in a flexible and user-friendly packaging, Cable Guy, that simplifies the installation work significantly.

Characteristics

Construction characteristics

Conductor material

Copper

Conductor shape

Circular

Insulation

HFFR

Lead free

Yes

Type of conductor

Class 2

Dimensional characteristics

Approximate weight

6.6 kg/100m

Conductor cross-section

1.5 mm²

Tube diameter

16 mm

Electrical characteristics

Rated Voltage Uo/U (Um)

300/500 V

Usage characteristics

Max. conductor temperature in service

90 °C

RoHS compliant

Yes
