EXQ 3G2,5 / GRHAL 4SM + 2x2x0,6

DESCRIPTION

CONSTRUCTION

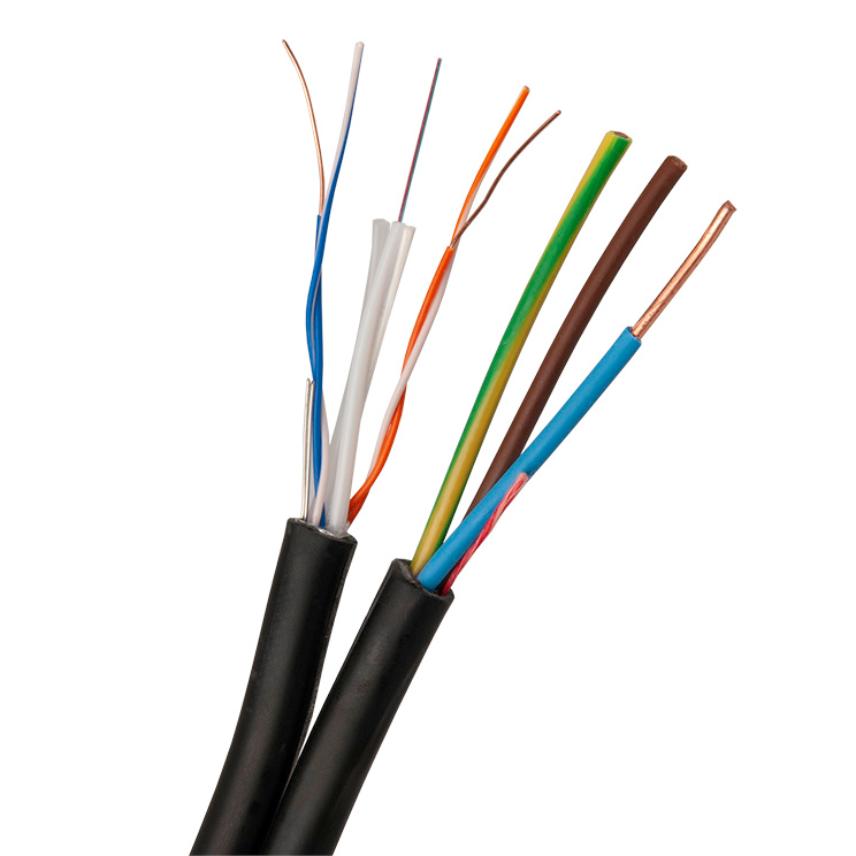

The hybrid cable is Halogen-free, HFFR-sheathed, Tearable figure-8 cable, With a small core and is easily divisible.

EXQ 3G2,5 500V Installation cable part

EXQ is a halogen-free, PEX insulated installation cable with round solid copper conductors. Constructed according to Nexans Spec. Resistance according to IEC 60228 class 1. The parts are color-coded according to SS 424 17 20. The sheath is marked type / manufacturer / year + month.

• Conductor, area                                           2.5 mm²
• Insulation                                                     PEX 70 degrees
• Conductor resistance at 20°C, max             8.41 Ohm/km
• Voltage, Kass Uo/U                                     300/500V

GRHAL 4SM + 2x2x0.6 100V Signal Cable Part

4 colored single-mode fibers are loosely packed in a polyester tube with optical filler + 2 twisted pairs of solid copper. Cabled around a strain relief. Shielded, longitudinally laid AL/PE tape + 2 connecting wires of tinned copper. The shield forms a moisture barrier together with the jacket.

• Type of optical fiber        G657A2
• Typical attenuation         0.20 db/km
• Color code                      Red/Blue/White/Green

Copper conductor

• Conductor diameter                                                                      0.6 mm
• Insulation PE Conductor resistance at 20°C, max                       66.6 Ohm/km
• Resistance imbalance, max                                                         2%
• Capacitance conductor-conductor max                                       59 nF/km
• Capacitance imbalance, max                                                      150 pF/500m
• Insulation resistance, min                                                            5000 MOhm/km
• Voltage during operation, max                                                     100 V

QUALITY SYSTEM

Design, manufacturing and testing have been carried out in accordance with the requirements laid down in ISO 9001.

ENVIRONMENTAL MANAGEMENT SYSTEM

The operations at our factory in Grimsås are certified according to ISO 14001.
