ELLY (Drop Cable; Duct/Underground)
ELLY (Drop Cable; Duct/Underground)

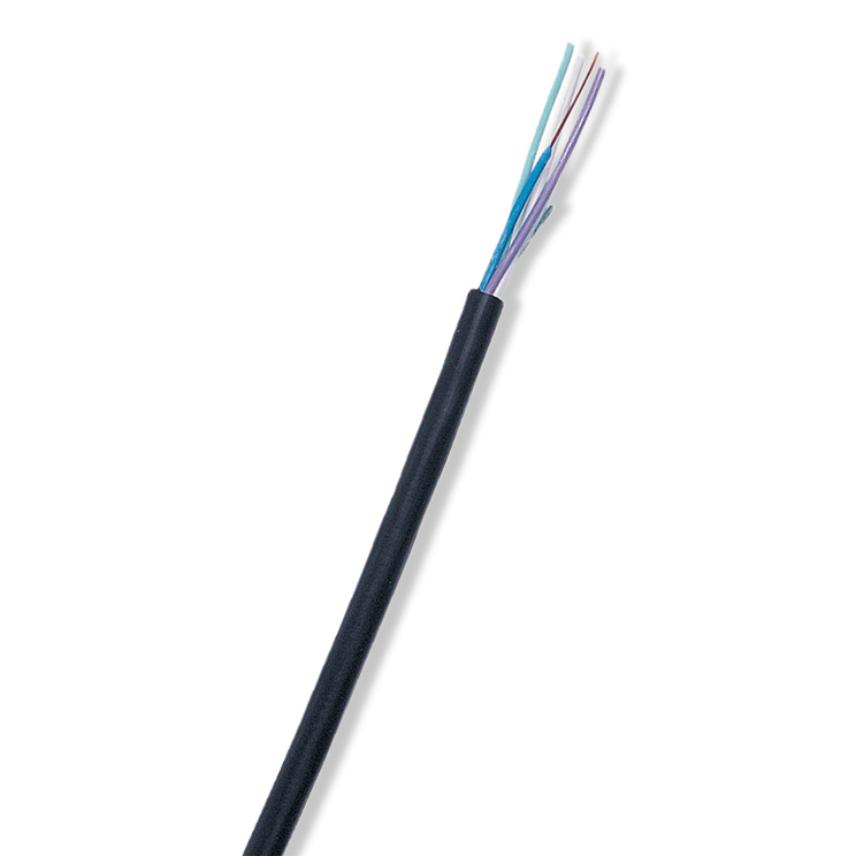

Quad twisted, PE sheathed telephone drop cable intended for installation outdoors, underground.
Read more
Description
Description
Standards
-
NationalSS 424 14 37; SS 424 16 60
DESCRIPTION
Design
PE-insulated quad twisted drop cable with black PE-sheath. The cable is intended for outdoor installation in ground or in ducts.
Quality and environmental management system
Certified according to ISO 9001, IRIS, ISO/TS 16949 and ISO 14001.
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Conductor flexibility
Singlewire
Conductor material
Annealed copper
Insulation
PE
Material used for longitudinal water tightness
None
Screen
No
Outer sheath
PE
Colour
Black
Dimensional characteristics
Dimensional characteristics
Conductor diameter
0.6 mm
Number of cores
4
Average sheath thickness
1.3 mm
Nominal outer diameter
6.5 mm
Approximate weight
4.0 kg/100m
Electrical characteristics
Electrical characteristics
Max. DC resistance of the conductor at 20°C
64.7 Ohm/km
Resistance unbalance DC max % of loop resistance
2 %
Max. capacity pair / core to core
40 nF/km
Capacitance unbalance max.
300 pF/500m
Ohmical resistance of the insulation
5000 MOhm.km
Maximum operating voltage
100 V
Transmission characteristics
Transmission characteristics
Attenuation, max. 800 Hz
1.0 dB/1000m
Attenuation, max. 1 MHz
15 dB/1000m
Mechanical characteristics
Mechanical characteristics
Maximum pulling force by laying
0.1 kN
Usage characteristics
Usage characteristics
Length
500 m
Packaging
Reel
Ambient installation temperature, range
-20 ... 40 °C
Operating temperature, range
-40 ... 70 °C
Minimum static operating bending radius
52 mm
Resources
Resources
Documentation
Colour Scheme (Swedish)
pdf — 10.4 kB
Selling & delivery Information
ELLY will be delivered in lengths of 500. The reel is marked with manufacturer, type of cable and length. The ends of the cable are sealed.
