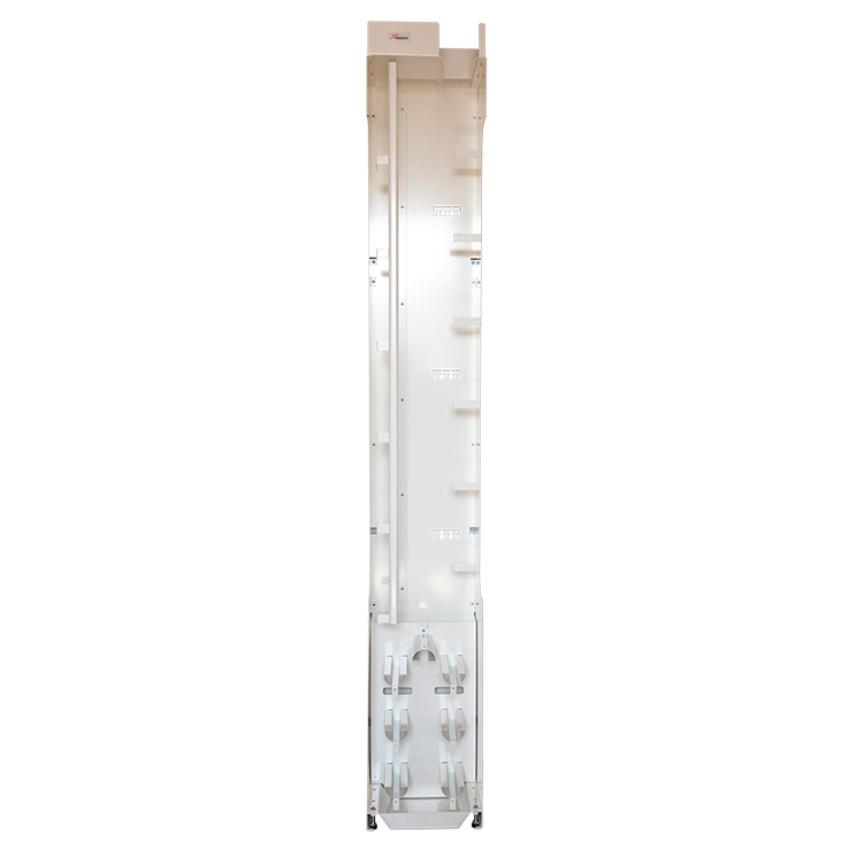

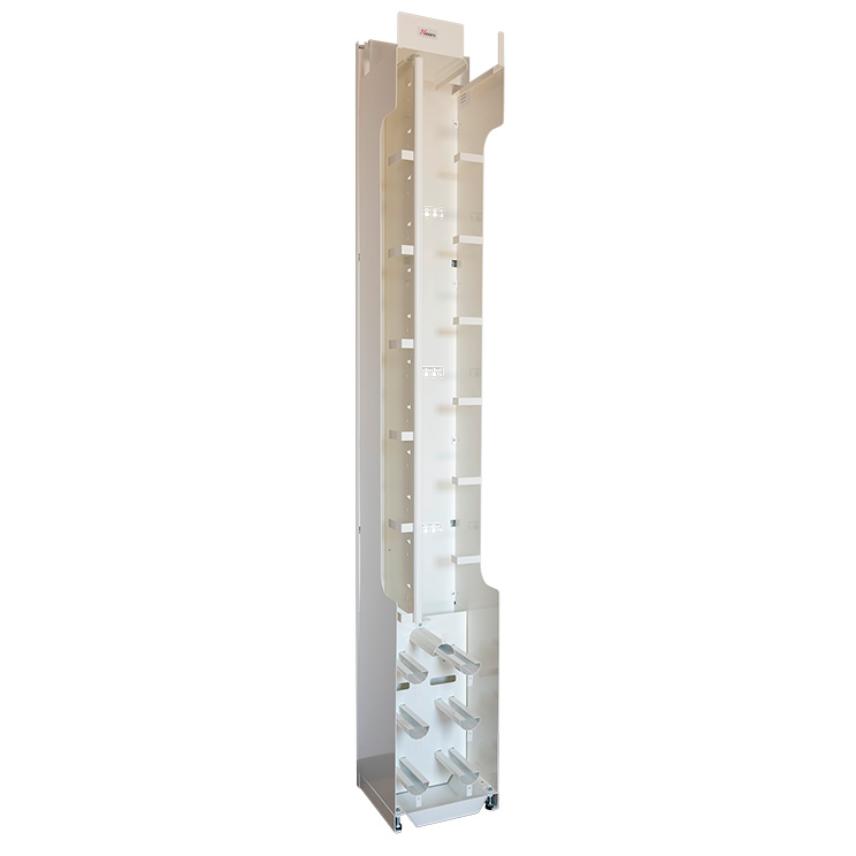

N3S Patching frame 1800/300 mm
N3S Patching frame 1800/300 mm
Modular system for terminating a large number of optical fibres.
Read more- Nexans ref. : 30308909-000-00
- Country ref. : 5001121
- EAN : 7330000205048
Description
Description
N3S Patching Frame 1800/300 is designed to accommodate a total of 576 SC connectors. The rack has space for either 6 N3S 96-fiber ODF-boxes or 12 N3S 48-fiber ODF-boxes. Including the cable ladder, the rack has a total height of 2065 mm and occupies a floor area of only 300x300 mm.
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Colour
White
Dimensional characteristics
Dimensional characteristics
Number of optical connectors
576
Width
300 mm
Depth
300 mm
Height
2065 mm
Approximate weight per piece
35 kg
Usage characteristics
Usage characteristics
Field of application
Indoor
Packaging
Box
