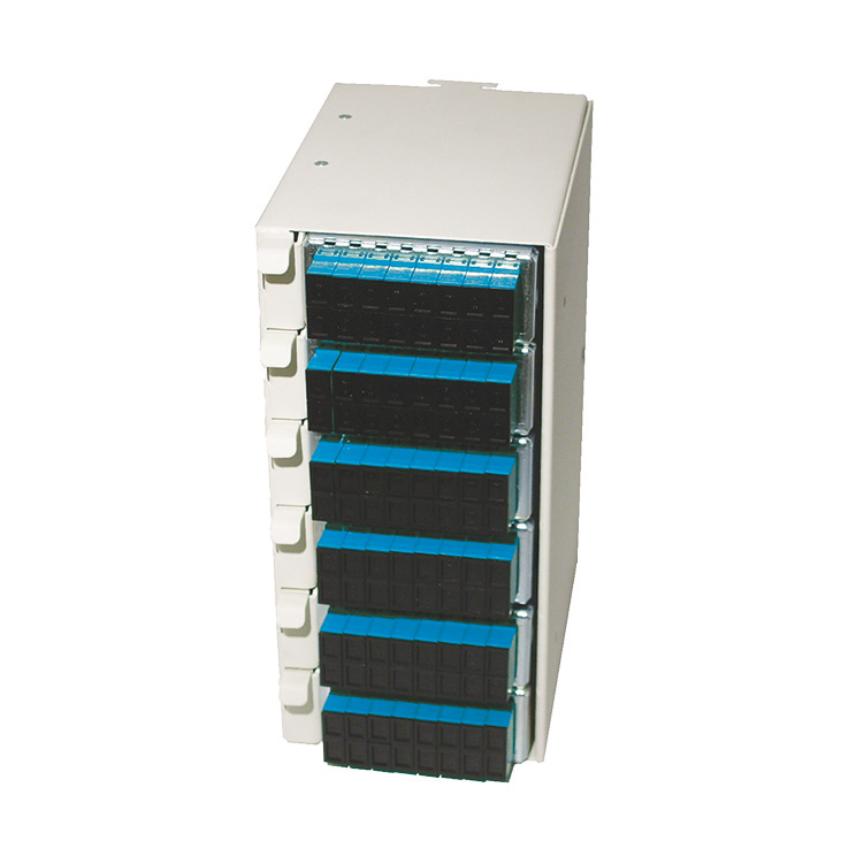

N3S Preterminated fibre optic subrack with fan-out
N3S Preterminated fibre optic subrack with fan-out
Preterminated fibre optic fan-out subrack to be used in N3S optical distribution frames.
Read moreN3S Preterminated fibre optic fan-out subrack 48SM SC/UPC
Nexans ref. 28493209-000-00 - Country ref. 5025948
- Packaging: Unit
- Number of optical connectors: 48
N3S Preterminated fibre optic fan-out subrack 96SM SC/UPC
Nexans ref. 28493309-000-00 - Country ref. 5025949
- Packaging: Unit
- Number of optical connectors: 96
Description
Description
Preterminated fibre optic fan-out subrack for N3S system. The N3S subrack is delivered preterminated with 48 or 96 fibres (6 or 12 fan-outs) and with connectors SC/UPC. The subrack is delivered complete with panel board, adapters, connectors, attach device, cable fixing device.
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Box type
Splicing and patching
Colour
White
Cable entry
From the bottom
Type of patching panel
SC Duplex
Connector type
SC
Fiber optic type
SM (G.652D)
Type of secondary protection
8-fibre ribbon
Dimensional characteristics
Dimensional characteristics
Depth
180 mm
Width
112 mm
Apex offset
50 µm
Ferrule outer diameter
2,4999 ± 0,0005 mm
Tolerance of cavity diameter
+1, -0 µm
Concentricity error of cavity
< 1,4 µm
Usage characteristics
Usage characteristics
Field of application
Indoor
Storage temperature, range
... °C
Operating temperature, range
... °C
Ambient installation temperature, range
-10 ... 40 °C
