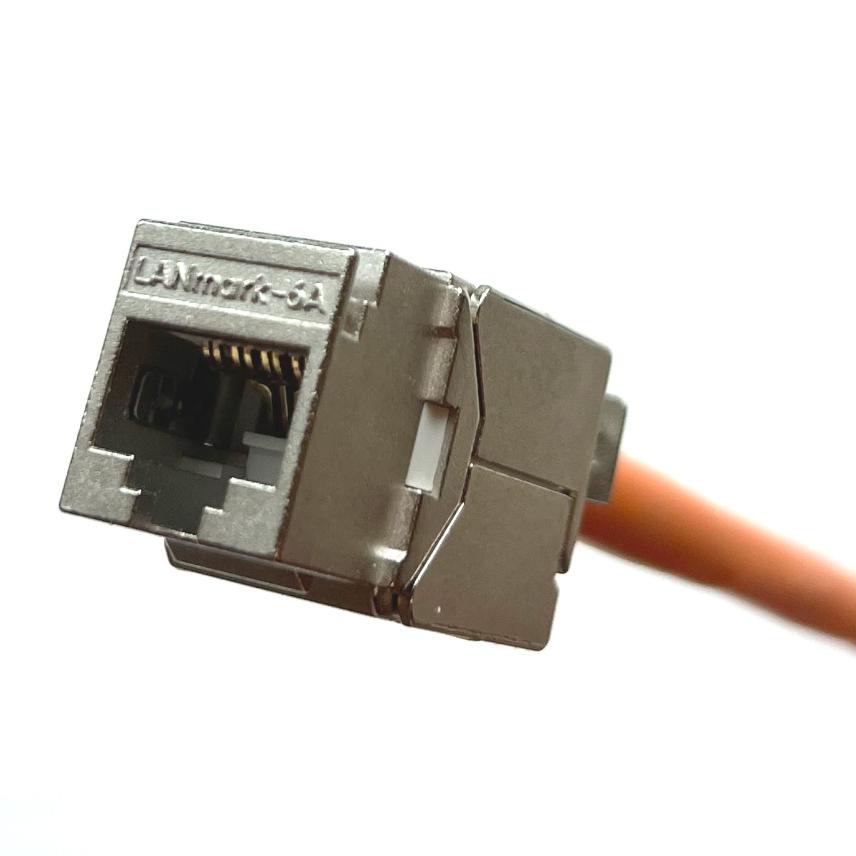

LM6A ULTIM Snap-In Connector Category 6A Screened CE

Description

Description

Standards

  • Product
    EN 50173-1; IEC 60603-7-51; IEEE 802.3af (PoE); IEEE 802.3bt (PoE++); IEEE 802.3at (PoE+); ISO/IEC 24764
  • International
    ISO/IEC 11801:2002/Amd 1:2008/Cor 1:2008; ISO/IEC 11801:2002/Amd 2:2010/Cor 1:2010

Data requirements for smart building applications have grown significantly with the rise of IP convergence and the technological evolution of certain applications. Power over Ethernet (PoE) protocols, for instance, have tripled the power requirements, which in turn has influenced how cabling infrastructures are designed.

Similarly, wireless networks have experienced a major boost in speed and capacity with the introduction of WiFi 6, WiFi 6E, and WiFi 7.

These technological evolutions require a reliable, high-performing, and scalable cabling infrastructure.

Additionally, considering environmental factors, cabling solutions have become a critical component in ensuring the efficient operation of smart buildings.

With many years of experience in structured cabling, Aginode recognises the importance of providing solutions that meet these technological advancements while ensuring the long-term sustainability of smart buildings.

Electrical Performance LANmark-6A 4 Connector Channel

All values are based on Worst Case 4 Connector Channel configurations according to ISO11801.
Minimum and maximum values represent guaranteed Channel performance.
Standard values based on ISO11801 Class EA

Characteristics

Characteristics

Construction characteristics

Construction characteristics

Connector type
RJ45 and Tool-less IDC
Screen
Yes

Dimensional characteristics

Dimensional characteristics

Height
19 mm
Depth
36.4 mm
Width
16.8 mm

Usage characteristics

Usage characteristics

Category
Cat. 6A
Component function
Connector
Range
